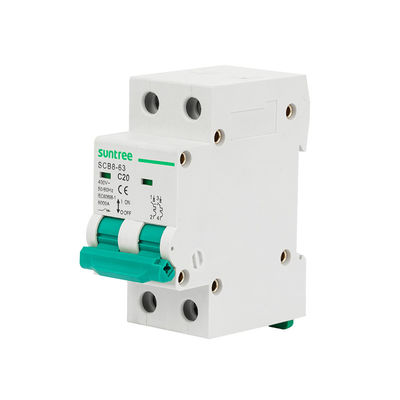

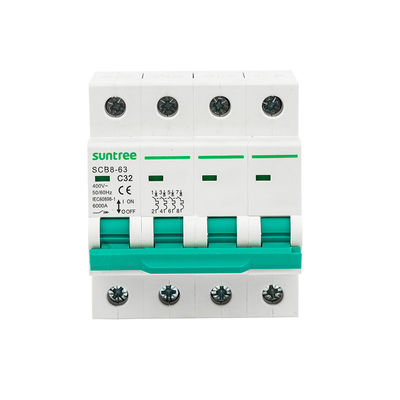

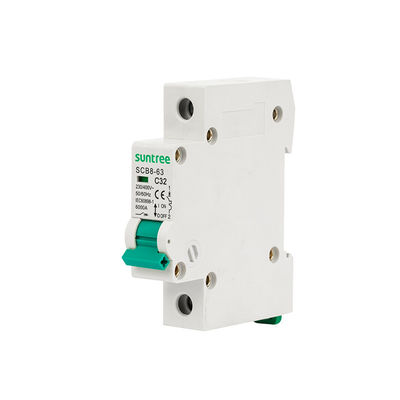

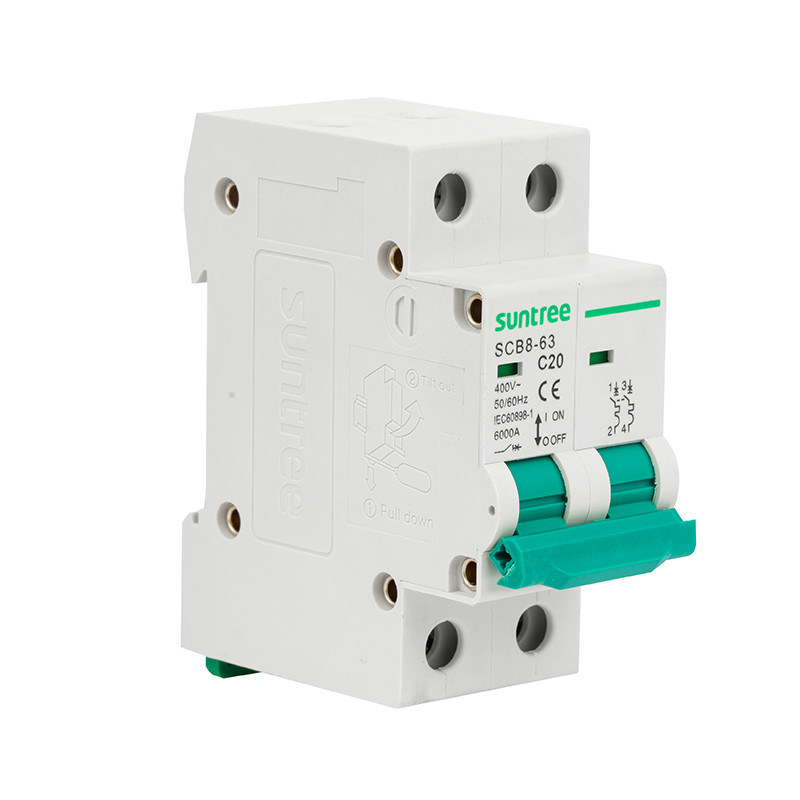

6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb

6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb
6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb

Large Image :  6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE/OEM
Certification: IEC CE
Model Number: C45
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $1.30 - $15.00 / Piece
Packaging Details: standard packing
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Type: Mini Poles Number: 1P 2P 3P 4P
Product Name: AC MCB Standards: IEC60898,IEC60898-2
Pole: 1P 2P 3P 4P Tripping Characteristics: C
Rated Breaking Capacity: 4.5/6KA Rated Current: 1~63A
Mechanical Life: 20,000 Protection Degree: Terminals IP20,Housing IP40
Operqating Temperature: -25~+55 Terminal Size: 0.75~25mm2
Port: Ningbo/shanghai
High Light:

IEC60898 miniature circuit breaker

,

AC 30a mcb

,

30a mcb miniature circuit breaker

Best Selling Home Use 2 Pole 63 Amp AC Circuit Breaker Automatic Switch





Product Description

SCB8 AC MCB circuit breaker series is used in lighting distribution system ormotor distribution system for protecting overload and short-circuitin the system.

The product is novel in structure, light in weight,reliable and excellent in performance. It has high breaking capacity,up to 6kA. Its case and items are adopted with high fire-resistant and shockproof plastics.The product, with long life, is mainly used in AC 50/60Hz single-pole 230V or two, three, four-pole 400V circuit for overload and shortcircuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case.

The product complies with EN/IEC60898.
Product Parameters
Type
SCB8-63
Poles
1P 2P 3P 4P
Rated current
1/2/3/4/6/8/10/16/20/25/32/40/50/63A
Rated voltage
230V/400V/415V AC
Characteristic capacity
4.5KA/6KA
Electrical life
6000times
Mechanical life
20000times
Tropicalizes
Treatment 2
Curve
B,C,D
Certificate
CE TUV IEC GB
Standards
IEC 60898-1
Rated impulse withstand voltage
6.2kV
Connection terminal
Screw terminal / Pillar terminal with calmp
Connection capacity
Rigid conductor up to 25mm²
Fastening torque
2.0Nm
Installation
On symmetrical DIN rail 35mm / Panel mounting



6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 16kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 26kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 36kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 46kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 56kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 6

Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 8
6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 10
6kA 32A 63A AC IEC60898 Miniature Circuit Breaker Mcb 12
FAQ
Q: When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q: What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Can I get a sample for test before place order?
A: Of course!

Q: How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
