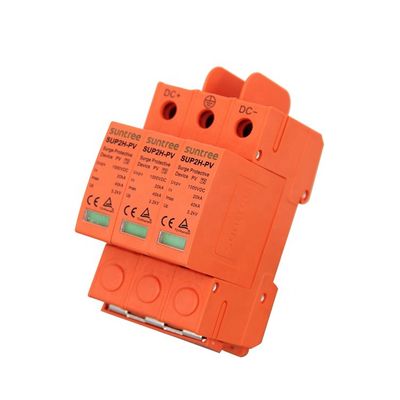

SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector

SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector

Large Image :  SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Suntree/OEM
Model Number: SUP2H1-PV
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $14.50 - $20.00 / Piece
Packaging Details: Standard Carton box
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: Solar Surge Protector Color: Red/Yellow
Pole: 2P,3P Rated Voltage: Up To 1500V
Protection Grade: IP20 Certificate: CE TUV ROHS
Max Discharge Current Imax: 20kA;40kA Installation: TH35-7.5 DIN Rail
Indicated: Normal:Green ; Abnormal:Red Gurantee Period: 2 Years
Port: Ningbo/Shanghai
High Light:

SUP2H1-PV DC Surge Protector

,

SUP2H1 Solar PV SPD

,

3Pole 1000V DC Surge Protector

Manufacturer SUP2H1-PV Solar PV Surge Protector 3 Pole 1000V DC SPD





Product Description
Installed in parallel on the DC networks to be protected and provide common and different modes protection.
High energy MOVs equipped with specific thermal disconnect
Related failure indicators.
With visual indication
With optional remote contact signaling
Adopt import high quality chip. Material Zinc oxide
Easy to change with plug-in module
Every pole achieve 1500V, 1200V, 1000V, 800V,500V
PPT cover with Anti flame material
Meet National Standard Test & TUV test
In accordance with IEC 60364-7-712
In 2 years warranty
Double protection: disconnection and short-shunting device with safe electrical isolation
Approved Static test: Voltage, current, leakage current
Product Parameters
SUP2-PV series surge protector
SUP2-PV


Normal PV system voltage
1000V
1200V
1500V
MCOV
1170V DC
1200V DC
1500V DC
Max system discharge current
40ka
30ka
30ka
Voltage protection level
≤4kv
≤4.5kv
≤4.5kv
Voltage protection level at 5ka
≤3.5kv
≤4kv
≤4kv
Integrated Fuse breaking capacity
/interrupting rating
30ka/100v dc
30ka/1200v dc
30ka/1500v dc
Technology
Short-current interription overload protection


Operating temperature range
-40℃ + 80℃


Normal discharge current
12.5ka


Response time
<25ns


Operating state/fault indication
green(good) Red(replace)


Conductor rating and cross-sectionalarea
Min: 60/75℃ 1.5mm2 /14AWG Solid/ Flexible



Max: 60/75℃ 35mm2 /2AWG Standards /25mm2/


Mounting
35mm din rail per EN 60175


Enclosure material
UL 94V0 thermoplactic


Degree of protection
IP20


Capacity
3 Modules, din 43880


Standards information
IEC 61643-11 Type2, IEC 61643-1 Class Ⅱ


Product warranty
Five years







SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 1

Application
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 2
SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance

The electrical circuit or communication lines because of outside interference peak current or voltage suddenly, the surge protector can in a very short time conducting shunt, so as to avoid damage to other equipment surge in the loop Installed front of inverter input and back of inverter output Installed in Parallel the spd is installed in the electric circuit with parallel, the first to play a protective role, the response time in the 25 to 50 nanosecond
Installation
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 3
Recommend Products
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 4
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 6
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 8
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 10
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 12
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 14
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 16
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 18
Company Information
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 20
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 22
SUP2H1-PV Solar PV 3Pole 1000V DC Surge Protector 24
FAQ
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.

Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
