SUP2H-PV Solar 800V 40ka DC Surge Protector

SUP2H-PV Solar 800V 40ka DC Surge Protector
SUP2H-PV Solar 800V 40ka DC Surge Protector SUP2H-PV Solar 800V 40ka DC Surge Protector SUP2H-PV Solar 800V 40ka DC Surge Protector SUP2H-PV Solar 800V 40ka DC Surge Protector SUP2H-PV Solar 800V 40ka DC Surge Protector SUP2H-PV Solar 800V 40ka DC Surge Protector

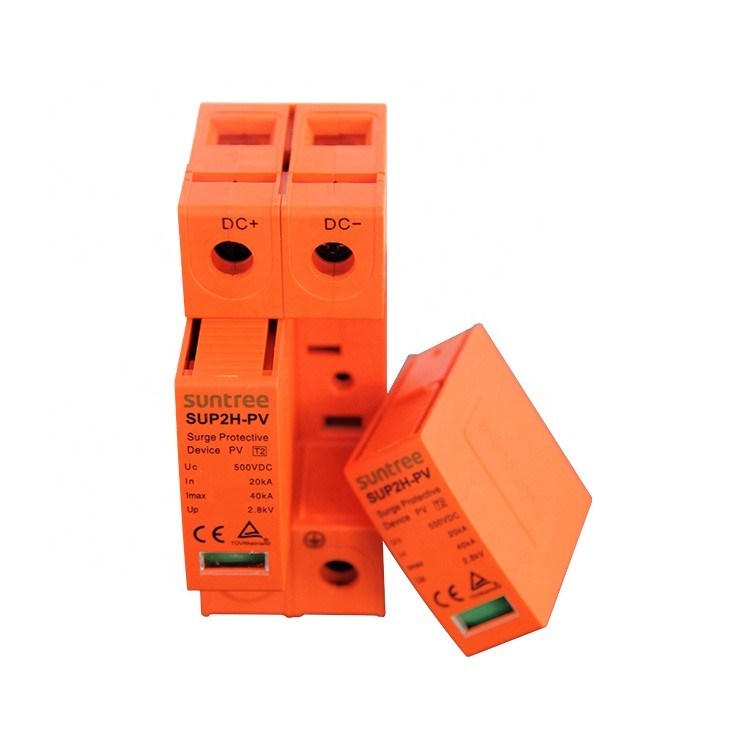

Large Image :  SUP2H-PV Solar 800V 40ka DC Surge Protector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE
Model Number: SUP2H-PV
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $7.00 - $20.00 / Piece
Packaging Details: standard carton packing
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Test Standard: Surge Protective Device Network Voltage Un: DC 500V 800V
Nominal Discharge Current In: 20KA Max Discharge Current: 40KA
Mounting Symmetrical Rail: 35mm Disconnector: Internal
Indicator: Normal: Green ; Failure: Red Protection Grade: IP20
Operating Temperature: -40/+85°C Port: Ningbo/shanghai
High Light:

800V DC Surge Protector

,

800V 40ka SPD

,

2P DC Surge Protector

Suntree SUP2H-PV Solar PV DC SPD 500V 800V 2P 40ka SPD Surge Protective Device Surge Arresters





Product Description
1. SUP2-PV Series SPD Protect DC Surge Protector Solar, protect against lightning surge voltage in solar system (photovoltaic power supply system).

2. These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (soalr panel side and inverter/converter side), ely if the line routing is external and long.

3. High energy MOVs equipped with specificthermal disconnectors and related failure indicators.
Product Parameters
Type

SUP2-PV

Pole

2P
2P
Uoc max (V DC)

500
800
Uc (V DC)

500
800
ln(8/20)us(kA)

20
20
lmax(8/20)us(kA)

40
40
Up (kV)

2
3.8
Maximum working voltage

250VAC/30VDC

Maximum working current

1A(250VAC)


Wiring capacity
Hard wire
4-25


Flexible wire
4-16

Striping length

10

Terminal screwa

M5


Torque(Nm)
Main circuit
3.5


Remote singal control
0.25


Protection class
All profile
IP40


Connection port
IP20

Installation environment

No obvious shock and cibration

Product Details Show

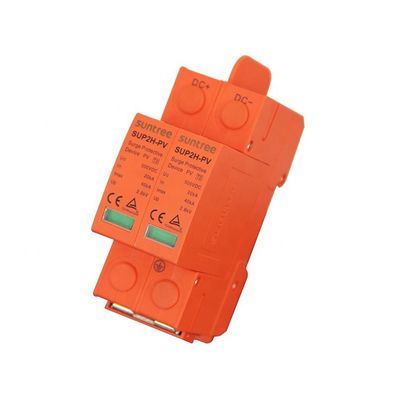

SUP2H-PV Solar 800V 40ka DC Surge Protector 1
SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance

The electrical circuit or communication lines because of outside interference peak current or voltage suddenly, the surge protector can in a very short time conducting shunt, so as to avoid damage to other equipment surge in the loop Installed front of inverter input and back of inverter output Installed in Parallel the spd is installed in the electric circuit with parallel, the first to play a protective role, the response time in the 25 to 50 nanosecond
Our Advantages
First factory produce 1500V SPD, approved TUV certificate at EN50539-11 standard.
Every pole achieve 1500V, 1200V, 1000V, 500V.
PPT material cover. Anti flame.
Use Longke chip from Taiwan. Material Zinc oxide.
With specific thermal disconnects and failure indicator(visual indicator/ optional): green-good, red-replace
Remote control: with signal contact
Plug-in module
Life: 50 times
Recommend Products
SUP2H-PV Solar 800V 40ka DC Surge Protector 2
SUP2H-PV Solar 800V 40ka DC Surge Protector 4
SUP2H-PV Solar 800V 40ka DC Surge Protector 6
SUP2H-PV Solar 800V 40ka DC Surge Protector 8
SUP2H-PV Solar 800V 40ka DC Surge Protector 10
SUP2H-PV Solar 800V 40ka DC Surge Protector 12
SUP2H-PV Solar 800V 40ka DC Surge Protector 14
SUP2H-PV Solar 800V 40ka DC Surge Protector 16
Company Information
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
SUP2H-PV Solar 800V 40ka DC Surge Protector 18
SUP2H-PV Solar 800V 40ka DC Surge Protector 20
SUP2H-PV Solar 800V 40ka DC Surge Protector 22
FAQ
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q:How long is your products warranty ?
A: The warranty period of our products is 2 Years.

Q:How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q:What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
