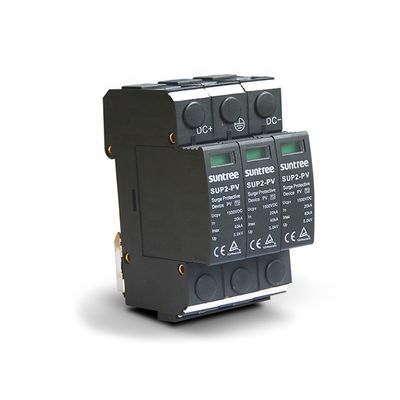

DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector

DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector

Large Image :  DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Suntree/OEM
Model Number: SUP2H1-PV
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $14.50 - $20.00/ Piece
Packaging Details: Standard Carton box
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: SPD Solar Surge Protector Decive Color: Red
Rated Voltage: Up To 1000V Protection Grade: IP20
Pole: 3P Certificate: CE TUV ROHS
Max Discharge Current Imax: 20kA;40kA Installation: TH35-7.5 DIN Rail
Indicated: Normal:Green ; Abnormal:Red Gurantee Period: 2 Years
Port: Ningbo/shanghai
High Light:

TUV CE DC Surge Protector

,

TUV CE Surge Protector Device

,

Suntree DC Surge Protector

Suntree DC 1000V 3P 20-40ka SPD Solar PV Surge Protector Device with TUV CE Certificate





Product Description

1. DC Surge Protector Solar, protect against lightning surge voltage in solar system (photovoltaic power supply system).



2. These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (soalr panel side and inverter/converter side), ely if the line routing is external and long.



3. High energy MOVs equipped with specificthermal disconnectors and related failure indicators.

Product Parameters
SUP2-PV series surge protector
SUP2-PV


Normal PV system voltage
1000V
1200V
1500V
MCOV
1170V DC
1200V DC
1500V DC
Max system discharge current
40ka
30ka
30ka
Voltage protection level
≤4kv
≤4.5kv
≤4.5kv
Voltage protection level at 5ka
≤3.5kv
≤4kv
≤4kv
Integrated Fuse breaking capacity
/interrupting rating
30ka/100v dc
30ka/1200v dc
30ka/1500v dc
Technology
Short-current interription overload protection


Operating temperature range
-40℃ + 80℃


Normal discharge current
12.5ka


Response time
<25ns


Operating state/fault indication
green(good) Red(replace)


Conductor rating and cross-sectionalarea
Min: 60/75℃ 1.5mm2 /14AWG Solid/ Flexible



Max: 60/75℃ 35mm2 /2AWG Standards /25mm2/


Mounting
35mm din rail per EN 60175


Enclosure material
UL 94V0 thermoplactic


Degree of protection
IP20


Capacity
3 Modules, din 43880


Standards information
IEC 61643-11 Type2, IEC 61643-1 Class Ⅱ


Product warranty
Five years


Application
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 1
SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance

The electrical circuit or communication lines because of outside interference peak current or voltage suddenly, the surge protector can in a very short time conducting shunt, so as to avoid damage to other equipment surge in the loop Installed front of inverter input and back of inverter output Installed in Parallel the spd is installed in the electric circuit with parallel, the first to play a protective role, the response time in the 25 to 50 nanosecond
Installation
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 2
Recommend Products
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 3
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 5
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 7
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 9
Company Information
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 11
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 13
DC 1000V 3P 20ka SPD Solar PV TUV CE DC Surge Protector 15
FAQ
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q:How long is your products warranty ?
A: The warranty period of our products is 2 Years.

Q:How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q:What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
