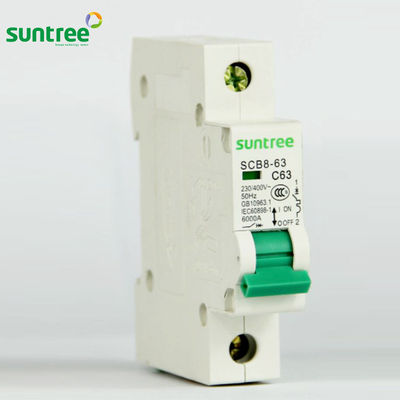

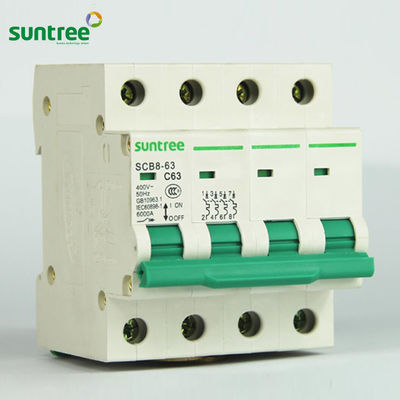

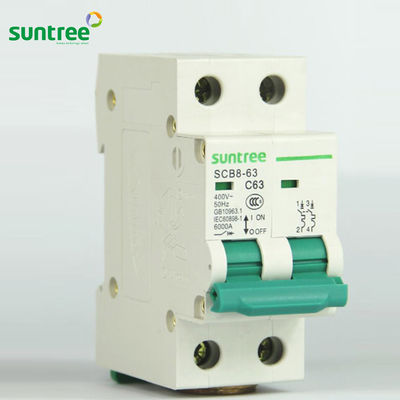

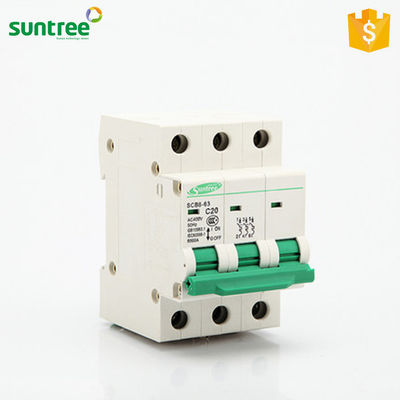

3P 230V SCB8-63 6kA Mini Circuit Breaker

3P 230V SCB8-63 6kA Mini Circuit Breaker
3P 230V SCB8-63 6kA Mini Circuit Breaker 3P 230V SCB8-63 6kA Mini Circuit Breaker 3P 230V SCB8-63 6kA Mini Circuit Breaker 3P 230V SCB8-63 6kA Mini Circuit Breaker

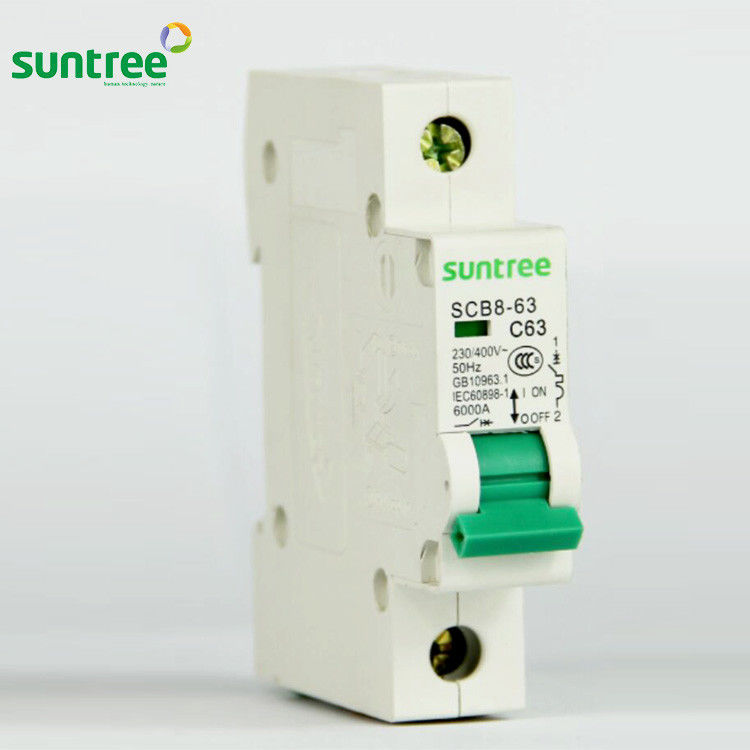

Large Image :  3P 230V SCB8-63 6kA Mini Circuit Breaker

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE
Certification: IEC;CE
Model Number: SCB8-63
Payment & Shipping Terms:
Minimum Order Quantity: 120 Piece/Pieces
Price: $1.40 - $16.43 / Piece
Packaging Details: standard packing
Delivery Time: 7~15DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Type: Mini Poles Number: 1P 2P 3P 4P
Product Name: AC Mini Circuit Breaker Standards: CE CB IEC60898
Poles: 1,2,3,4 Tripping Characteristics: B;C;D
Rated Breaking Capacity: Up To 6kA Rated Current: 1~63A
Mechanical Life: 20,000 Protection Degree: Terminals IP20,Housing IP40
Operqating Temperature: -25~+55 Terminal Size: 0.75~25mm2
Port: Ningbo/shanghai
High Light:

230V Mini Circuit Breaker


SCB8-63 mcb circuit breaker


6kA Mini Circuit Breaker

Mini Circuit Breaker mcb circuit breaker 230V 400v 1P 2P 3P 4P SCB8-63 6kA

Product Description
Mini Circuit Breaker AC MCB 230V 400v 1P 2P 3P 4P SCB8-63H 10kA manufacture good quality3P 230V SCB8-63 6kA Mini Circuit Breaker 0
SCB8-63 AC MCB circuit breaker series is used in lighting distribution system ormotor distribution system for protecting overload and short-circuitin the system.

The product is novel in structure, light in weight,reliable and excellent in performance. It has high breaking capacity,up to 6kA. Its case and items are adopted with high fire-resistant and shockproof plastics.The product, with long life, is mainly used in AC 50/60Hz single-pole 230V or two, three, four-pole 400V circuit for overload and shortcircuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case.

The product complies with EN/IEC60898.
Product Parameters
1P 2P 3P 4P
Rated current
Rated voltage
230V/400V/415V AC
Characteristic capacity
Electrical life
Mechanical life
Treatment 2
IEC 60898-1
Rated impulse withstand voltage
Connection terminal
Screw terminal / Pillar terminal with calmp
Connection capacity
Rigid conductor up to 25mm²
Fastening torque
On symmetrical DIN rail 35mm / Panel mounting
Details Images
3P 230V SCB8-63 6kA Mini Circuit Breaker 2
3P 230V SCB8-63 6kA Mini Circuit Breaker 3
Product Processing

The state-of-art design

Elegant appearance;cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.


Handle central-staying function for circuit fault indicating
In case of overload, to protect circuit,MCB handle trips and stays at central position, which enables
a quick solution to the faulty line. The handle cannot stay in such position when operated manually.


High short-circuit capacity
High short-circuit capacity 6KA for whole range and 10kA capacity for current rating up to 63A
thanks to the powerful electric arc extinguishing system.

Long electrical endurance up to 6000 cycles thanks to quick making mechanism.


Handle padlock device
MCB handle can be locked either at "ON" position or at "OFF" position to prevent unwanted operation of the product.


Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals.

Company Profile
SUNTREE Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
3P 230V SCB8-63 6kA Mini Circuit Breaker 4
3P 230V SCB8-63 6kA Mini Circuit Breaker 6
3P 230V SCB8-63 6kA Mini Circuit Breaker 8
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q:What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:Can I get a sample for test before place order?
A:Of course!

Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
