Product Details:
Payment & Shipping Terms:
|
| Type: | Mini | Poles Number: | 1P 2P 3P 4P |
|---|---|---|---|
| Product Name: | AC Mini Circuit Breaker | Standards: | CE CB IEC60898 |
| Poles: | 1,2,3,4 | Tripping Characteristics: | B;C;D |
| Rated Breaking Capacity: | Up To10kA | Rated Current: | 1~63A |
| Mechanical Life: | 20,000 | Protection Degree: | Terminals IP20,Housing IP40 |
| Operqating Temperature: | -25~+55 | Terminal Size: | 0.75~25mm2 |
| Port: | Ningbo/shanghai | ||

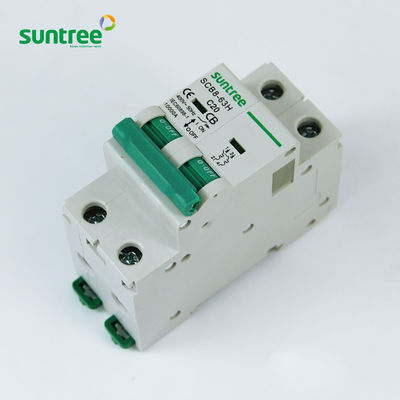

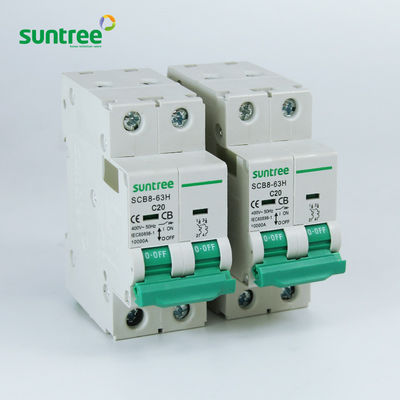

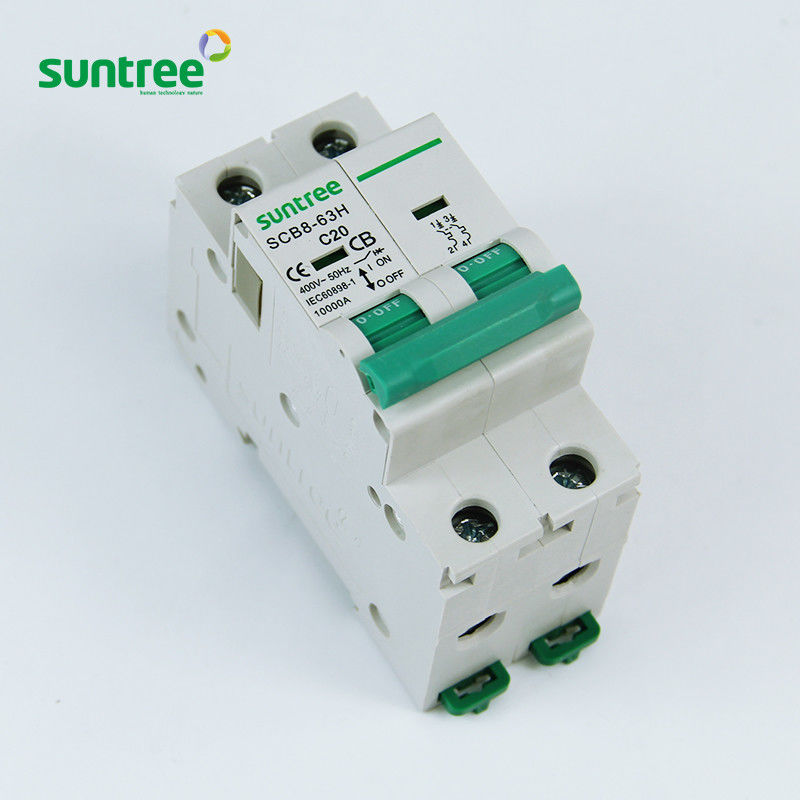

| High Light: | SCB8-63H AC Circuit Breakers,2P 10kA Mini Circuit Breaker,2P 10kA AC Circuit Breakers |
||
|
Type
|
SCB8-63H
|
|
Poles
|
1P 2P 3P 4P
|
|
Rated current
|
1/2/3/4/6/8/10/16/20/25/32/40/50/63A
|
|
Rated voltage
|
230V/400V/415V AC
|
|
Characteristic capacity
|
10KA
|
|
Electrical life
|
6000times
|
|
Mechanical life
|
20000times
|
|
Tropicalizes
|
Treatment 2
|
|
Curve
|
B,C,D
|
|
Certificate
|
CE TUV IEC GB
|
|
Standards
|
IEC 60898-1
|
|
Rated impulse withstand voltage
|
6.2kV
|
|
Connection terminal
|
Screw terminal / Pillar terminal with calmp
|
|
Connection capacity
|
Rigid conductor up to 25mm²
|
|
Fastening torque
|
2.0Nm
|
|
Installation
|
On symmetrical DIN rail 35mm / Panel mounting
|
The state-of-art design
Elegant appearance;cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
Handle central-staying function for circuit fault indicating
In case of overload, to protect circuit,MCB handle trips and stays at central position, which enables
a quick solution to the faulty line. The handle cannot stay in such position when operated manually.
High short-circuit capacity
High short-circuit capacity 6KA for whole range and 10kA capacity for current rating up to 63A
thanks to the powerful electric arc extinguishing system.
Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
Handle padlock device
MCB handle can be locked either at "ON" position or at "OFF" position to prevent unwanted operation of the product.
Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals.
