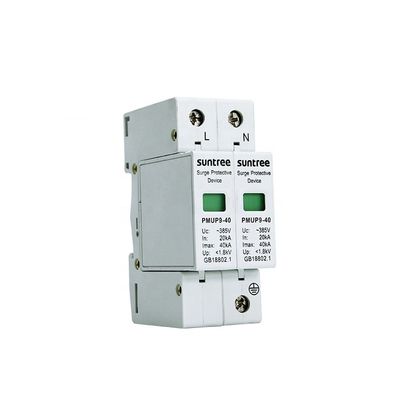

White Lightning Arrester 2Pole AC Surge Protector

White Lightning Arrester 2Pole AC Surge Protector
White Lightning Arrester 2Pole AC Surge Protector White Lightning Arrester 2Pole AC Surge Protector White Lightning Arrester 2Pole AC Surge Protector White Lightning Arrester 2Pole AC Surge Protector White Lightning Arrester 2Pole AC Surge Protector White Lightning Arrester 2Pole AC Surge Protector

Large Image :  White Lightning Arrester 2Pole AC Surge Protector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE
Model Number: SUP1
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $3.50 - $15.00 / Piece
Packaging Details: standard carton packing
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Type: Surge Protective Device Poles Number: 2P/4P
Voltage: 220V 230V 275V 385V Breaking Capacity: 40kA
Frequency: 50/60Hz Application: Distribution System
Certificate: TUV CE SAA Guarantee Period: 2 Years.
Brand: Suntree Port: Ningbo/shanghai
High Light:

2Pole AC Surge Protector

,

2Pole AC Surge Protection Device

,

Lightning SPD AC Surge Protector

China Top Brand White AC Surge Protection Device 2 or 4 Pole SPD Lightning Arrester Price for Distribution System





Product Description
1: SUP1 AC Spd is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc power supply system of AC 50/60HZ
2: Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc
3: SUP1 AC Spd to protect from direct and indirect lightning impulse and other transient over voltage
4: Distribution box with outdoor input in the building and each floor
Product Parameters
Type & Specs
SUP1 B,C,D / OEM spd





Protection Level
B,C,D





Rated Operating Voltage Un(V)
380V/220V





Max continuous operating voltage Uc/V
275V
320V
385V
385V
385V
420V
Voltage protection level up(KV)
≤1.0
≤1.20
≤1.80
≤2.0
≤2.2
≤2.8
Maximum discharge current Imax(8/20μs)KA
10
20
40
60
80
100
Nominal discharge current In(8/20μs)KA
5
10
20
30
40
60
Response times
≤25





Test Stardard
IEC61643-1/GB18802-1





Operating Environment
-40 degree to + 85 degree





Max Connection Line
35mm2 hard wire/35mm2 strand wire copper line





Recommended Connection Line
16mm2 hard wire/25mm2 strand wire copper line





Installation
Standard Rail 35mm





Material of outer covering
Burning -proof Nylon





Product Details Show
Could be replaced for the module not need power cut.
Maximum current of endure the lightning stroke 50KA.
Time of response<100ns.
The color of visible window shows operating status, green means normal, red means abnormal.
White Lightning Arrester 2Pole AC Surge Protector 1
White Lightning Arrester 2Pole AC Surge Protector 2
White Lightning Arrester 2Pole AC Surge Protector 3
Product Processing
White Lightning Arrester 2Pole AC Surge Protector 4
Recommend Products
White Lightning Arrester 2Pole AC Surge Protector 5
White Lightning Arrester 2Pole AC Surge Protector 7
White Lightning Arrester 2Pole AC Surge Protector 9
White Lightning Arrester 2Pole AC Surge Protector 11
White Lightning Arrester 2Pole AC Surge Protector 13
White Lightning Arrester 2Pole AC Surge Protector 15
White Lightning Arrester 2Pole AC Surge Protector 17
White Lightning Arrester 2Pole AC Surge Protector 19
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
White Lightning Arrester 2Pole AC Surge Protector 21
White Lightning Arrester 2Pole AC Surge Protector 23
White Lightning Arrester 2Pole AC Surge Protector 25
FAQ
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.

Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
