3poles 100A IEC Ce ATS Automatic Transfer Switch

Certification
China Wenzhou Xinchi International Trade Co.,Ltd certification
China Wenzhou Xinchi International Trade Co.,Ltd certification
I'm Online Chat Now

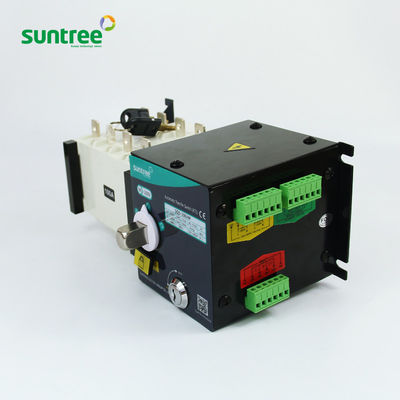

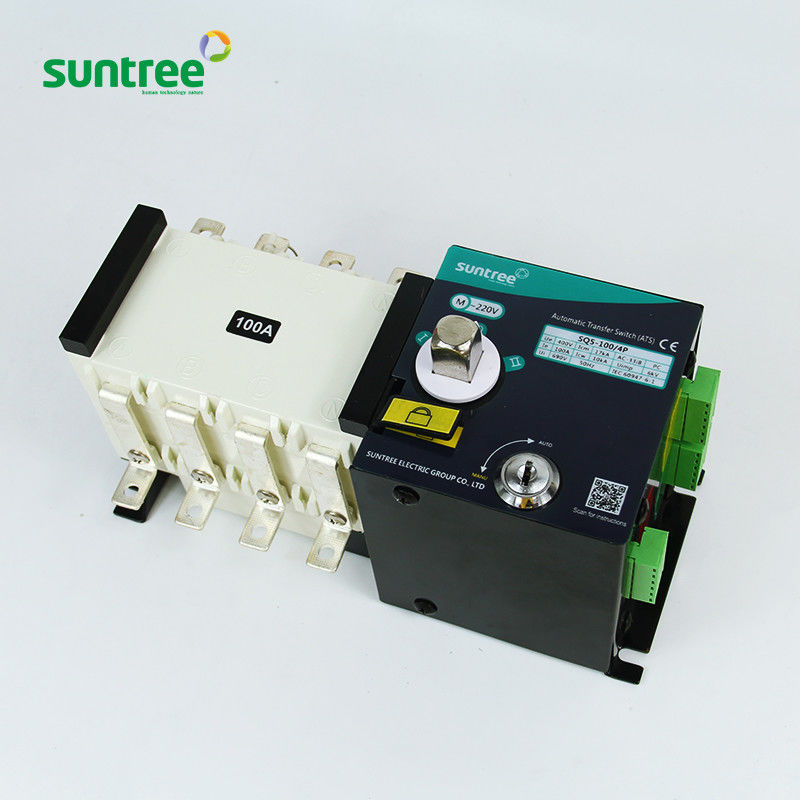

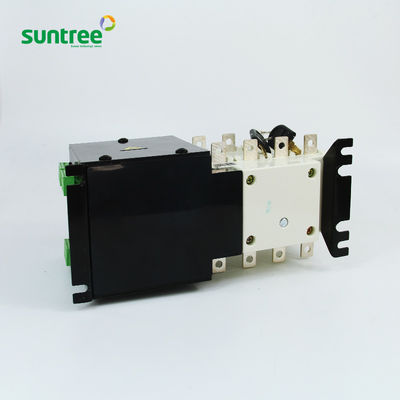

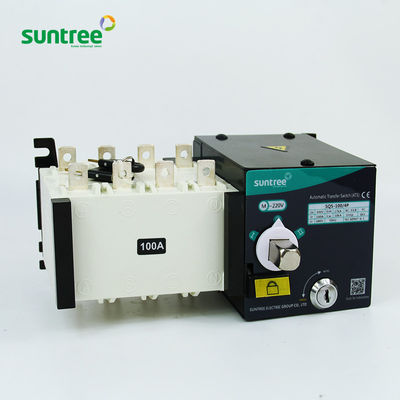

3poles 100A IEC Ce ATS Automatic Transfer Switch

3poles 100A IEC Ce ATS Automatic Transfer Switch
3poles 100A IEC Ce ATS Automatic Transfer Switch 3poles 100A IEC Ce ATS Automatic Transfer Switch 3poles 100A IEC Ce ATS Automatic Transfer Switch 3poles 100A IEC Ce ATS Automatic Transfer Switch

Large Image :  3poles 100A IEC Ce ATS Automatic Transfer Switch

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE
Certification: IEC CE
Model Number: SQ3
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 25~600usd
Packaging Details: standard carton packing
Payment Terms: MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Operation: Electric Type Installation: Fixed
Speed: Normal Type Circuit Breaker Structure: Conventional Circuit Breaker
Arc-Extinguishing Medium: Air Certification: Iec Ce
Max. Voltage: 690V Temperature: -25 To 55
Pole: 3 Pole 4 Pole
High Light:

IEC Ce ATS Automatic Transfer Switch

,

IEC Ce ATS switch

,

100A ATS Automatic Transfer Switch

ATS Automatic transfer switch IEC Report Ce Approved 3poles 100A 160A 400A for Generator ATS



Product Introduction

1. Product usage
SQ5 Dual Power Automatic Transfer Switch Series (hereafter called as SQ5) is a kind of new automatic transfer switch gathered switch and logic controller, achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 1000V, rated frequency 50Hz, rated voltage 660V, conventional heating current up to 3200A supplying for switch automatically of common power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and military installation etc. Important situation where disallow power supply failure.
The switch is an operation device that various logic order is sent by control circuit board to managing electrical engine, then through gear box, arouses spring store energy, release instantaneously after deceleration. So that can make and break circuit quickly or make circuit transfer. By obvious state can achieve safety insulation.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation; While have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. Function The switch is the best choice of the same kind product with beautiful appearance, novel, simple and direct design, small volume, complete function.

2. Main Parameter

1.SQ5 ATS 100~1600A series automatic change-over switch electrical properties and mechanical properies
Conventional thermal current lth A 100A 160A
Rated current ln(A) 20A 40A 63A 80A 100A 125A 160A
Rated impulse withstand voltage Ui(A) 500 500 500 500 500 500 500
Dielectric strength(V) 5000 5000 5000 5000 5000 5000 5000
Rated surge-resistant voltage Uimp kV(installed category IV) 8 8 8 8 8 8 8
Rated Working current le(A) 380A AC-31 20 40 63 80 100 125 160
AC-33 20 32 40 63 80 125 160
AC-35 20 40 63 80 100 125 160
220A DC-31 20 40 63 80 100 125 160
DC-33 20 32 40 63 80 100 125
DC-35 20 40 63 80 100 125 160
Motor power P(380V)kW 10 20 25 30 32 60 80
Rated short-time withstand current(kA Rms)0.1S/1S 9/5 9/5 9/5 9/5 9/5 20/10 20/10
Rated breaking capbility(A Rms)AC33 380V 160 320 500 640 800 1000 1000
Rated making capability(A Rms)AC33 380V 200 400 630 800 1000 1250 1250
Rated short-current making capability lcm(kA peak value) 8 8 10 10 10 12 12
Mechanical durability(number of cyclic operation) 8000 8000 8000 8000 8000 5000 5000
Electric durability COSφ=0.65 AC33 1500 1500 1500 1500 1500 1000 1000
Change-oner time I-0-II or II-0-I (s)
I-0 or II-0 (s)
0.5
0.3
0.5
0.3
0.5
0.3
0.5
0.3
0.5
0.3
1.0
0.6
1.0
0.6
Power wer consumption of electrical control 24V(DC)(w) 50 50 50 50 50 75 75
220V(AC)(w) 50 50 50 50 50 75 75
Moment of operation(Nm) 15 15 15 15 15 22 22
Weight(kg) 3poles









8.2 8.2
4poles 4.2 4.3 4.4 4.5 4.5 8.7 8.7



3. Main Types
Types Carton Size

GW/

Carton

NW/

Carton

QTY/
carton
L W H
ATS SQ3W-63/4P 63A 0.485 0.31 0.28 17.53 15.53 8
ATS SQ3M-225/4P 225A 0.445 0.24 0.31 17.05 15.05 2
ATS SQ5-100/4P 100A 0.365 0.3 0.42 16.1 14.1 4
ATS SQ5-160/4P 160A 0.455 0.295 0.285 15.6 13.6 2
ATS SQ5-250/4P 250A 0.455 0.45 0.285 20.7 19.7 2
ATS SQ5-400/4P 400A 0.565 0.385 0.385 21.365 19.365 1
ATS SQ5-630/4P 630A 0.565 0.385 0.385 22.63 20.63 1
ATS SQ5-1000/4P 1000A 0.715 0.405 0.385 49.16 47.16 1
ATS SQ5-1250/4P 1250A 0.715 0.405 0.385 53.9 51.9 1
ATS SQ5-1600/4P 1600A 0.715 0.405 0.385 55.7 53.7 1
ATS SQ5-2500/3P 2500A       59   1

ATS SQ5-2500/4P 2500A 89*65.5*73cm/box 105KG/pcs

product QTY box/QTY size(M) GW/box KG total volume
M3
total GW KG each box QTY
L W H
SM1-400H 3P 400A MCCB 200 50 0.420 0.335 0.400 21.50 2.8140 1075.00 4
SM1-400H 4P 400A MCCB 40 20 0.410 0.325 0.280 15.50 0.7462 310.00 2
SM1-630H 3P 630A MCCB 100 50 0.395 0.335 0.255 15.00 1.6871 750.00 2
SM1-630H 4P 630A MCCB 20 10 0.430 0.350 0.320 20.00 0.4816 200.00 2
ATS SQ3-63 4P 63A ATS 96 12 0.475 0.315 0.285 18.10 0.5117 18.10 8
ATS SQ3-63 2P 63A ATS 56 7 0.475 0.315 0.285 13.95 0.2985 13.95 8


Production details



3poles 100A IEC Ce ATS Automatic Transfer Switch 0


Changeover time

3poles 100A IEC Ce ATS Automatic Transfer Switch 1



FAQ:
Q: What's your warranty?
A: One year

Q: How can I trust you and your company?
A: Suntree is a group company, we have 6 sub-companies.
Have cooperation with
LS, EKF the world-class companies.
Our company over 500 employees, products pass
CE,IEC,TUV,SAA, RCM, ROHS certificates.


Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare,
then provide customer the most proper shipment method.


Q: What's about MOQ?
A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by made-in-china,
or send us by email, we will reply within 24hrs.


Thank you & Now pls send your inquiry! ^!^
