Product Details:
Payment & Shipping Terms:
|
| Usage: | Low Voltage | Breaking Capacity: | High, High |
|---|---|---|---|
| Safety Standards: | IEC, IEC | Product Name: | Fuse Holder |
| Pole: | 1P | Rated Current: | 1-63A |
| Rated Voltage: | DC1500V | Short-circuit Breaking: | 20KA |
| Port: | Shanghai/ningbo | ||
| High Light: | SRD-30 fuse holder,DC1500V low voltage fuse holder,14x85mm low voltage fuse holder |
||

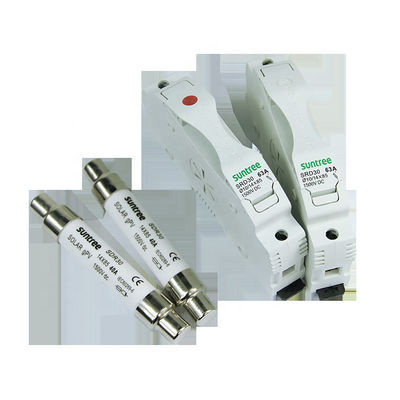

SRD-30 series 14*85mm dc 1500v low voltage fuse holder
This series of fuse is suitable for solar photovoltaic power generation system, rated voltage to 1500V, rated current to 50A, connected with photovoltaic panels and batteries, to charge variable flow system for short circuit breaking protection in photovoltaic station and photovoltaic power generation system.the rated breaking capacity is 20KA, products confirms to IEC60269.6.
|
Type
|
SRD-30
|
|
|
|
|||
|
Fuse size
|
14*85MM
|
|
|
|
|||
|
Poles
|
1p
|
|
|
|
|||
|
Rated voltage
|
Dc 1500V
|
|
|
|
|||
|
Rated current
|
1-63A
|
|
|
|
|||
|
Short-circuit breaking
|
20KA
|
|
|
|
|||
|
Max power
|
6.5W
|
|
|
|
|||
|
Protection qarde
|
IP20
|
|
|
|
|||
|
Connection
|
1-16mm2
|
|
|
|
|||
|
Operation ambient
|
-40℃—+90℃
|
|
|
|
|||
|
Resistance and
|
Class 2
|
|
|
|
|||
|
Elevation
|
<=2000
|
|
|
|
|||
|
Installation way
|
TH7.5-35/DIN35 Rail installation
|
|
|
|
|||
Structure
Fuse Link is made of pure silver,welding low tin and encapsulated in the high-strength porcelain, the fuse tube filled with high pure quartz sand with chemically processed as a arc medium, fuse body is connected with contacting terminals by spot welding.
Normal Working Conditions
Use Category
