Product Details:
Payment & Shipping Terms:
|
| Usage: | Low Voltage | Breaking Capacity: | High |
|---|---|---|---|
| Safety Standards: | IEC | Rated Voltage: | DC 1000V |
| Rated Current: | 1-30A | Pole: | 1P |
| Fuse Size: | 10.3*38.5 | Rotection Degree: | IP20 |
| Installation Class: | Class III | Certificate: | CE;TUV;ROHS |
| Standard: | IEC60269-6;GB/T13539.6 | Installation: | TH-35 DIN RAIL |
| Gurantee Period: | 2Years | Port: | Ningbo/Shanghai |
| High Light: | 6Amp Micro Thermal Fuse,Suntree 6Amp Thermal Fuse Holder,IP20 Micro Thermal Fuse |
||

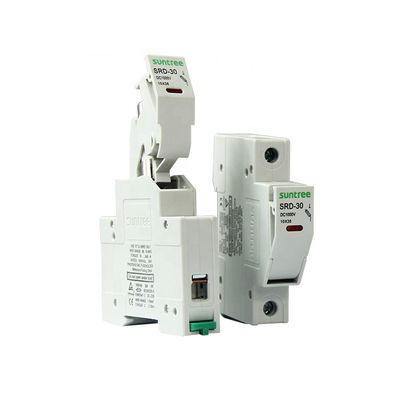

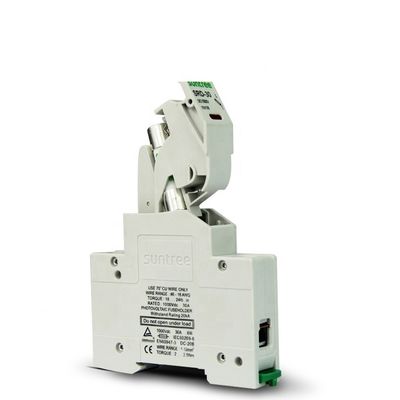

6 amp Micro Thermal Fuse and Fuse Holder for Solar System
1. A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
2. DC Fuse mainly used in DC combiner box in solar PV systems. When PV panel or imverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse aslo used to protect other electrical parts in DC circuit, when overload or short circuit.
Parameters
| Type | SRD-30 |
| Fuse size | 10 x 38mm |
| Poles | 1P |
| Rated voltage | DC 1000V |
| rated current | 1,2,3,4,5,6,8,10,12,15,20,25,30amp |
| short-circuit breaking capacity | 33KA |
| max power attenuation | 3.5W |
| protection grade | IP20 |
| connection | 2.5-10mm2 |
| operation ambient temperature | -30~+70°C |
| Resistance and damp hot | Class 2 |
| elevation | ≤ 2000 |
| installation way | TH35-7.5/DIN35 Rail installation |
| RH(relative air humidity) | when +20 °C,not exceed 95%;when +40 °C,not exceed 50% |
| pollution class | 3 |
| installation environment | the place of no abvious vibrate & impact |
| installation class | Ⅲ |
| WxHxL | W18 x H89 x L90mm |
| Weight(kg) | 0.07 |
Application
1. Photovoltaic system fuse accord with UL248-1 standard.
2. Photovoltaic battery dc fuse designed to used for photovoltaic (PV) system.
3. Main effect is to protect the solar panels. Solar panels points in effective condition is broken,.
4. Fault light cells break points at the same time, does not affect other normal work of light from
the stack.
5. Technical Data Rated coltage:DC1000V Breaking capacity:25KA Function level:PV.
Certificate
Company Infromation
Zhejiang XinChi Electric Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts, Solar Panel/Inverter/Cable, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box.etc.
Quality &Standards:Products are producted perISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
1. Strong Production Capacity
2. Experienced and Professional R&D Team
3. Strict Quality Control About 19 QC staffs,testing workers and technicians guarantee the quality of goods.
4. Rapid Logistics Management Top logistics system SAP provides accurate and timely delivery.
5. Quick Response Any inquiries will be answered on the same day as the arrival of your call,fax or email.
Trade Term
1. Payment : T/T ,paypal,western union
2. Sample lead time: 1-3days
3. Production lead time: 5 days
4. Shipping freight are delivered under your requests
5. Shipping port :Shanghai/Ningbo,mainland china
6. Discounts are offered based on order quantities
7. Packaging: 12pcs/box
8. Shipping: By Express(EMS,DHL,UPS,ARAMEX), By Air or By Sea
FAQ
Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.
Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
Contact Person: Cara
Tel: 86-15067840824
