20A DC Isolator Switch

20A DC Isolator Switch
20A DC Isolator Switch 20A DC Isolator Switch 20A DC Isolator Switch 20A DC Isolator Switch 20A DC Isolator Switch 20A DC Isolator Switch

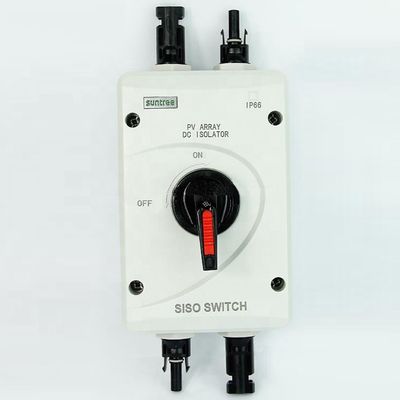

Large Image :  20A DC Isolator Switch

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Suntree
Model Number: SISO-40
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $15.00 - $35.00 / Piece
Packaging Details: standard carton packing
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Max. Current: 32A Max. Voltage: 1200V
Product Name: Dc Isolator Switch Certificate: IEC CE SAA TUV
IP Degree: IP66/67 Rated Current: 10A-32A
Rated Voltage: 1200V DC Pole: 3/4 Pole
Mechanical Life: 10000 Times Feature: Fair Retardant V0
UI: 1500V Material: Plastic
Port: Ningbo/shanghai
High Light:

20A DC Isolator Switch


PV 1000V Disconnector


1000V DC Isolator Switch

Suntree High Quality Solar DC Isolator Switch for PV 20A 1000V Disconnector



Product Description

1. UV Resistant IP66 Enclosure

2. Extremely Short Power Shut Off Time Of Approax.2ms

3. Lid Only Recommended In "off" Position

4. Earth Terminal

5. IEC60947-3, AS/NZS60947.3:2015

6. DC-PV1 DC-PV2 DC-21B

7. 10A To 32A up to DC 1200V

8. Wall-mounted design, No need to open the cover mounting, Flexible installation.

9. Rational Operational design prevents, reverse/incorrect rotation


Product Parameters
Model SISO-40
Pole 3P/4P
Rated voltage 1000VDC to 1200VDC
Rated current 10A/16A/20A/25A/32A
Dimensions 108X101X166mm
Waterproof degree IP66
Breaking capacity 1000/1700
Certificate CE/CB/TUV/IEC/SAA
Standards IEC60947-3
Ambient temperature -25℃-- +85℃
Insulated voltage DC 1500V
Connection type M20 M25 MC4
Details Images
Testing 96.5°C high temperature and flame retardant on site within 5 seconds,the burning flame is completely extinguished,shorter than standard 10 seconds.

The product passed IEC authorized IP66 waterproof testing,also our company will take simulation tests irregularly,similar to customer's using environment,to make sure this product completely conforms IP66 protection grade.

At about 2pm,the highest temperature moment in a day,we do test on the working DC isolating switch,maximum contact temperature is 28.8°C,which is lower than standard 35°C.
20A DC Isolator Switch 1
20A DC Isolator Switch 2
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: DC-Fuse, SISO-40 solar Isolator Switch, Solar on grid inverter/Cable/Connector, AC&DC Circuit Breakers, Contactors, MCCB, ATS auto transfer switch, Waterproof distribution box, DC Combiner
Quality &Standards:-Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc.
Main markets:-Australia,New Zealand,&other worldwide markets.
20A DC Isolator Switch 4
20A DC Isolator Switch 6
20A DC Isolator Switch 8

What are the common faults of isolator switches
1. Contact parts overheating,

2. Refuse opening and closing,

3. Error opening and closing.

What is the cause of the overheating of the contact part of the isolator switch during operation
During operation Isolator switch overheating, mainly due to heavy load, increased contact resistance, the operation is not fully satisfactory

Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
