20A Direct Current Circuit Breakers

20A Direct Current Circuit Breakers
20A Direct Current Circuit Breakers 20A Direct Current Circuit Breakers 20A Direct Current Circuit Breakers 20A Direct Current Circuit Breakers 20A Direct Current Circuit Breakers 20A Direct Current Circuit Breakers

Large Image :  20A Direct Current Circuit Breakers

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Suntree/OEM
Certification: CE/ISO9001/IEC/SAA/CB/ROHS
Model Number: SL7-63
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $6.00 - $15.00 / Piece
Packaging Details: Export standard packing
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Type: Mini Poles Number: 2P
Products Name: SL7-63 Old Type Miniature Circuit Breaker DC Voltage: DC550V,DC800V
Amps: 6A,10A,16A,32A,40A,60A,63A Etc Tripping Curve(B/C): 3-5In/5-10In
Breaking Capacity: 4.5KA/6KA Shell Color: White
Mounting: 35mm Din Rail Breaker Standard: IEC60947
Guarantee Period: 2 Year Port: Ningbo/shanghai
High Light:

SL7-63 Direct Current Circuit Breakers


Suntree Miniature Circuit Breaker


2 Pole Direct Current Circuit Breakers

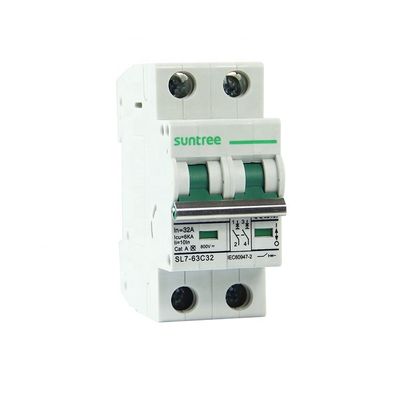

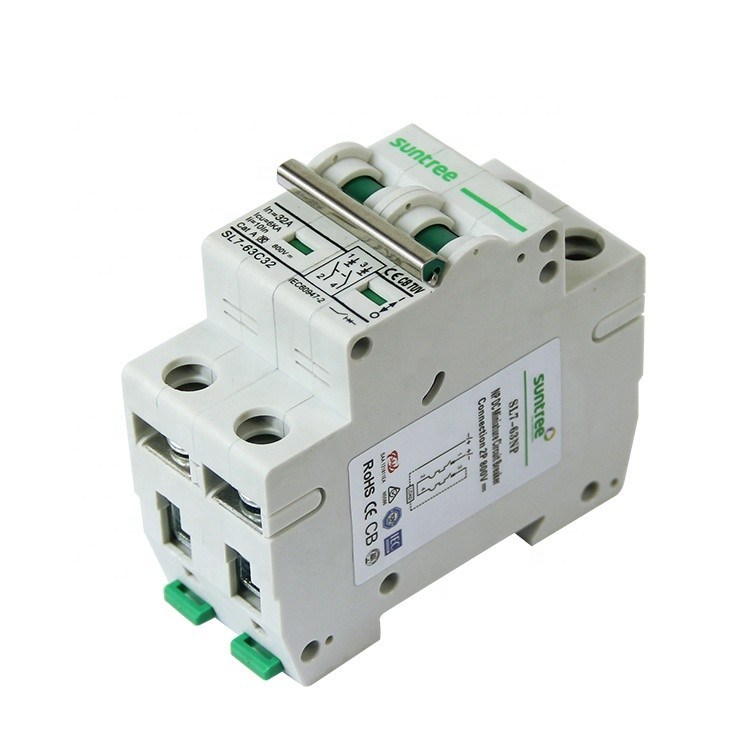

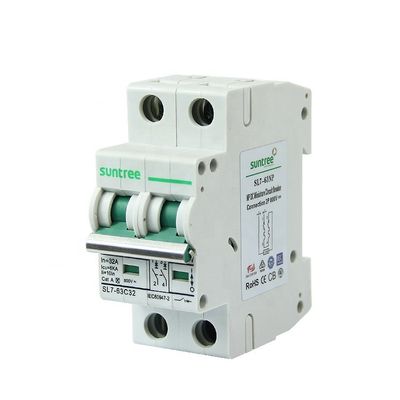

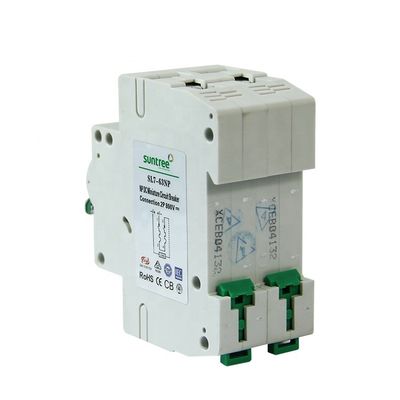

SL7-63 New Type DC 800V 2 Pole 20A Miniature Circuit Breaker Suntree Brand



Product Description

1. Specialised MCB for DC applications
2. Rating 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
3. Type B and C tripping characteristics (details available on request)
4. 4.5/6kA short circuit capacity (IEC60898)
5. 2P 550V / 800V ,  4P 1000V / 1200V
6. Current limiting operation under fault conditions
7. 18mm modular width per pole
8. IP20 finger proof terminals
9. Safety terminals ensure that incorrect connection is not possible
10. Terminal capacity up to 35mm
11. High torque terminals up to 4.5Nm
12. Circuit indicator window allowing clear labeling of circuits
13. Suitable for DIN rail mounting in OEM / panel builder enclosures
14. Suitable for installation in consumer units, design units and MCB distribution boards
15. Toggle is padlockable in "ON" or "OFF" position
16. Wide range of multi-functional accessories
Details Images
20A Direct Current Circuit Breakers 1
20A Direct Current Circuit Breakers 2
20A Direct Current Circuit Breakers 3
Product Parameters
Item DC Mini Circuit Breaker
Code SL7-63
Pole 2P 2P 4P 4P
Voltage DC 550V DC 800V DC 1000V DC 1200V
Current 6A/10A/16A/20A/32A/40A/50A/63A
Standard IEC/EN60947
Breaking Capacity 4.5KA/6KA/10KA
Characteristic Curve B/C/D
Working Temperature -5℃ to 40℃
Protection Degree IP20
Electrical life More than 8000 times
Mechanical life More than 2000 times
Installation 35mm Din Rail
Accessory YES
Installation Altitude <2000M

1. The state-of-art design:
Elegant appearance; cover and handle in arc shape make comfortable operation. Contact position indicating window Transparent cover designed to carry label.

2. Handle central-staying function for circuit fault indicating:

In case of overload, to protected circuit, MCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operatedmanually.

3. High short-circuit capacity:

High short-circuit capacity 10KA for whole range and 15kA capacity for current rating up to 40A thanks to the powerful electric arc extinguishing system. Long electrical endurance up to 6000 cycles thanks to quick making mechanism.

4. Handle padlock device:

MCB handle can be locked either at "ON" position or at "OFF" position to prevent unwanted operation of the product.

5. Screw terminal lock device:
The lock device prevents unwanted or casual dismounting of connected terminals


Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable,Connector, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
20A Direct Current Circuit Breakers 6
20A Direct Current Circuit Breakers 8
20A Direct Current Circuit Breakers 10
Q: If I'm interested in your DC MCB when I can receive your quotation and detail information after send the enquiry?
All your enquiry will be replied in 24hours.
Q: Your DC MCB seems perfect but what's the difference between you and other suppliers?
Our DC MCB is special for Solar system all the parts in the MCB are high quality customized. Not all the MCB are DC MCB!
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q: I need your price list of all your products, do you have a price list?
We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
