Product Details:
Payment & Shipping Terms:
|
| Insulation Material: | XLPE | Type: | Low Voltage |
|---|---|---|---|
| Application: | Industrial | Conductor Material: | Copper |
| Jacket: | PVC | Product Name: | Solar Heat Cable |
| Color: | Red/Black | Certificate: | TUV,CE |
| Rated Voltage: | AC 600/1000V DC 1000/1800V | Core: | 1 Core/2 Core |
| Cross-section: | 1.5/2.5/4/6/10/16 Mm2 | Rated Temp: | -40℃-+90℃ |
| Rated Current: | 20-95A | Weathering Resistance: | 4.97Ω |
| Finished Cable O.d: | 5.35+-0.1mm | Port: | Ningbo/Shanghai |
| High Light: | 2x2.5mm2 Solar Heat Cable,Suntree Solar Heat Cable,2x2.5mm2 DC Power Cable Wire |
||

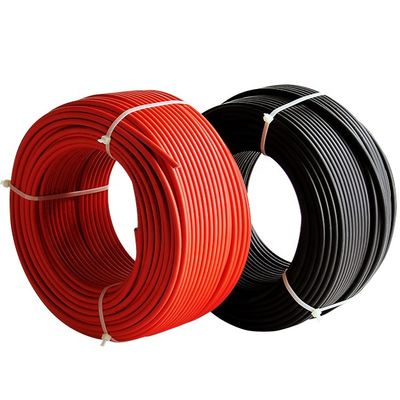

Power Cable and Wire DC Electrical Solar Heat Cable
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved
|
Single Core
|
Cross section mm²
|
Strand design No.x ø(mm)
|
Conductor diameter mm
|
Conductor diameter Ω /km
|
Outer diameter mm
|
|
PV-1*1.5 mm²
|
1.5
|
30x ø 0.25
|
1.6
|
13.9
|
4.5
|
|
PV-1*2.5 mm²
|
2.5
|
48x ø 0.25
|
2.0
|
8.06
|
5.3
|
|
PV-1*4.0 mm²
|
4.0
|
56x ø 0.3
|
2.6 |
4.97
|
6.2
|
|
PV-1*6.0 mm²
|
6.0
|
81x ø 0.3
|
3.3
|
3.52
|
7.2
|
|
PV-1*10.0 mm²
|
10.0
|
200x ø0.25
|
4.4
|
2.12
|
8.3
|
|
PV-1*16 mm²
|
16.0
|
224x ø 0.3
|
5.2
|
1.95
|
9.5
|
|
Twins Core
|
|
|
|
|
|
|
PV-2*1.5 mm²
|
1.5
|
30x ø 0.25
|
1.6
|
13.9
|
5.80*9.30
|
|
PV-2*2.5 mm²
|
2.5
|
48x ø 0.25
|
2
|
8.06
|
6.20*9.90
|
|
PV-2*4.0 mm²
|
4
|
56x ø 0.3
|
2.6
|
4.97
|
6.90*11.30
|
