16 Channels DC Combiner Box

China Wenzhou Xinchi International Trade Co.,Ltd certification
China Wenzhou Xinchi International Trade Co.,Ltd certification
I'm Online Chat Now

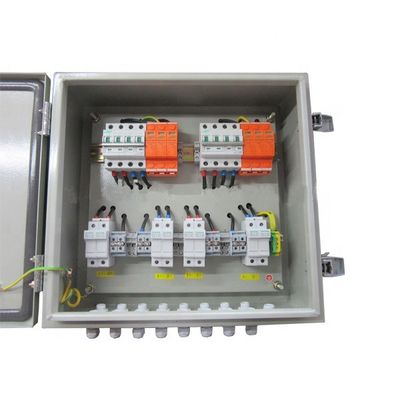

16 Channels DC Combiner Box

16 Channels DC Combiner Box
16 Channels DC Combiner Box 16 Channels DC Combiner Box 16 Channels DC Combiner Box 16 Channels DC Combiner Box 16 Channels DC Combiner Box 16 Channels DC Combiner Box

Large Image :  16 Channels DC Combiner Box

Product Details:
Place of Origin: Zhejiang, China
Model Number: SHLX-PV16
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: $13.00 - $500.00/ Piece
Packaging Details: standard packing
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Strings Available: 2/3/6/8/10/16 Strings Range Of Output Current: 60-780A
Waterproof Grade: IP65 Box Material: Cold Pressed Steel/PC
Maximum Fuse Per Strings: 20A Dimensio For Array Junction Box: 800*500*180mm
Bus Bars Of Array Junction Box: Electroplated To Prevent Corrosion Type Of Array Junction Box: Standard, Intelligent Available
Maximum DC Voltage Input: DC 1000V Color: Grey
Port: Shanghai/Ningbo
High Light:

16 Channels DC Combiner Box


16 Channels Photovoltaic Combiner Boxes


Suntree DC Combiner Box

Suntree Photovoltaic DC Combiner Boxes Solar PV Array 16 Channels



Product Description

SHLX-PV16/1 PV combiner box bus synthetic DC input of 16 PV components to 1 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types: intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.


Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014.


Provide users with a safe, brief, beautiful and applicable photovoltaic system products.

The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by users requirements.

Product Parameters
System maximum dc voltage
Maximum input current for each string
Maximum input strings
Maximum output switch current
Number of inverter MPPT
Number of Output strings
Category of test
‖ grade protection
Nominal discharge current
Maximum discharge current
Voltage protection level
Maximum continuous operating voltage Uc
Structure characteristic
Plug-push module
Protection grade
Output switch
DC isolation switch(standard)/DC circuit
DC MC4/DC FUSE/DC Surge Protector
Monitoring module/Preventing diode
Installation method
Wall mounting type
Operating Temperature
Elevation of temperature
Permissible relative humidity
0-95%, no condensation


16 Channels DC Combiner Box 1

Product Details Show
16 Channels DC Combiner Box 2
16 Channels DC Combiner Box 3
16 Channels DC Combiner Box 4
Our Advantages
♦ High reliability
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.

♦ Strong adaptability
IP65 desigh,waterproof,anti dust and anti ularaviolet.
Strict test for high and low temperature,used widely/
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.

♦ Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.


Company Profile
16 Channels DC Combiner Box 5
16 Channels DC Combiner Box 7
16 Channels DC Combiner Box 9
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.
Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
