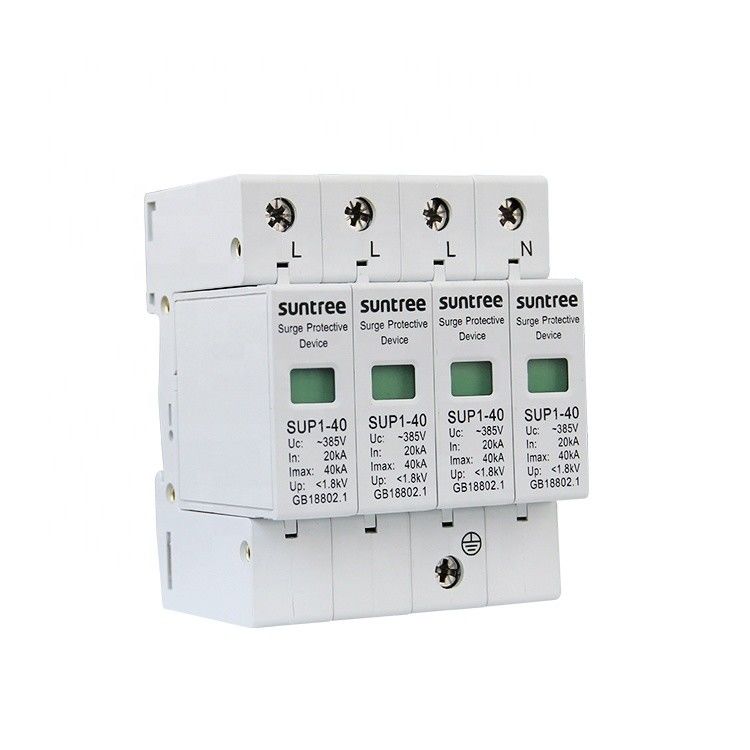

Large Image :  33kv AC Surge Protector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Suntree/oem
Model Number: SUP1
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $3.50 - $15.00 / Piece
Packaging Details: standard packing
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Type: 33kv Lightning Arrester Protection Level: IP40
Maximum Flow Capacity: 40ka Rated Voltage: 220V-380V
Response Time: 25 Frequency: 50Hz
Working Temperature: -40-85℃ Color: White
Quality: Stable And Reliable Port: Ningbo/shanghai
High Light:

33kv AC Surge Protector


33kv lightning SPD


Lightning Arrester AC Surge Protector

Surge Arrester AC Power 33kv Lightning Arrester Surge Protection Device



Product Description

1: SUP1 AC Spd is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc power supply system of AC 50/60HZ
2: Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc
3: SUP1 AC Spd to protect from direct and indirect lightning impulse and other transient over voltage
4: Distribution box with outdoor input in the building and each floor



Type & Specs SUP1 B,C,D / OEM spd
Protection Level B,C,D
Rated Operating Voltage Un(V) 380V/220V
Max continuous operating voltage Uc/V 275V 320V 385V 385V 385V 420V
Voltage protection level up(KV) ≤1.0 ≤1.20 ≤1.80 ≤2.0 ≤2.2 ≤2.8
Maximum discharge current Imax(8/20μs)KA 10 20 40 60 80 100
Nominal discharge current In(8/20μs)KA 5 10 20 30 40 60
Response times ≤25
Test Stardard IEC61643-1/GB18802-1
Operating Environment -40 degree to + 85 degree
Max Connection Line 35mm2 hard wire/35mm2 strand wire copper line
Recommended Connection Line 16mm2 hard wire/25mm2 strand wire copper line
Installation Standard Rail 35mm
Material of outer covering Burning -proof Nylon


33kv AC Surge Protector 1


Product Details Show
Could be replaced for the module not need power cut.
Maximum current of endure the lightning stroke 50KA.
Time of response<100ns.
The color of visible window shows operating status, green means normal, red means abnormal.
33kv AC Surge Protector 2
33kv AC Surge Protector 3
33kv AC Surge Protector 4
Product Processing
33kv AC Surge Protector 5
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
33kv AC Surge Protector 7
33kv AC Surge Protector 9
33kv AC Surge Protector 11
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.
Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
