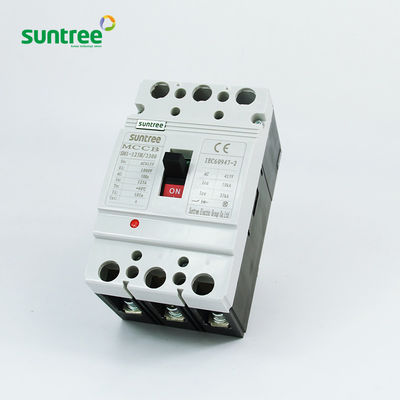

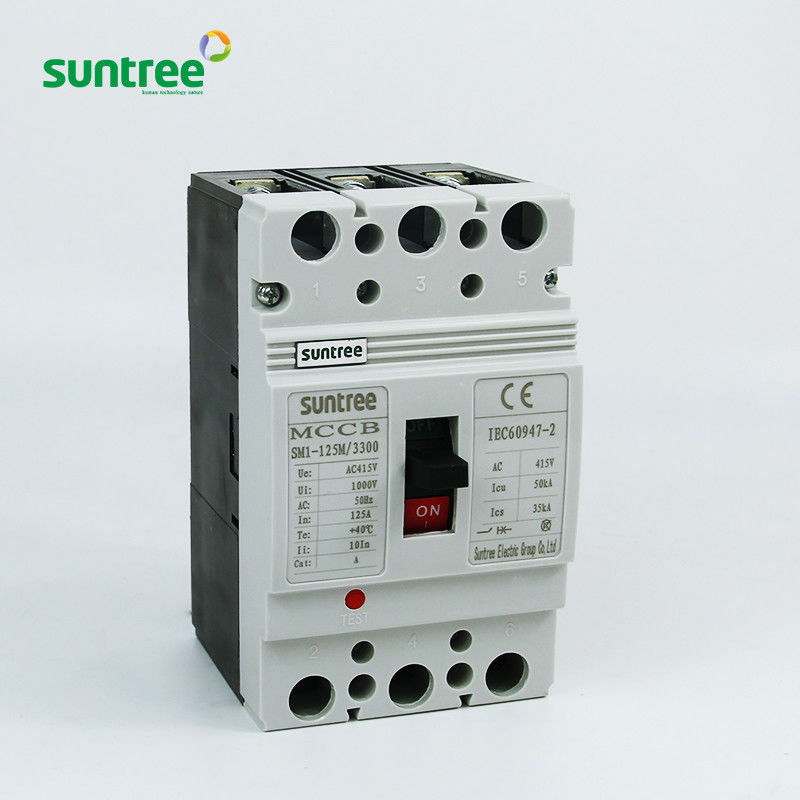

250A MCCB Moulded Case Circuit Breaker For Tender

250A MCCB Moulded Case Circuit Breaker For Tender
250A MCCB Moulded Case Circuit Breaker For Tender 250A MCCB Moulded Case Circuit Breaker For Tender 250A MCCB Moulded Case Circuit Breaker For Tender

Large Image :  250A MCCB Moulded Case Circuit Breaker For Tender

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE
Certification: IEC CE
Model Number: SM1-400
Payment & Shipping Terms:
Minimum Order Quantity: 5 Piece/Pieces
Packaging Details: standard carton packing
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: Mccb Moulded Case Circuit Breaker Poles Number: 3P,4P
Material: High Standard Plastic Silver Copper Certificate: TUV CE SAA
Standard: IEC60947-2, GB14048-2 Icu Of Mccb Circuit Breaker: 100kA
Ics Of Mccb Circuit Breaker: 35kA Ue Of Mccb Circuit Breaker: AC380V
Ui Of Mccb Circuit Breaker: 690V In Of Mccb Circuit Breaker: 250-400A0
AC Of Mccb Circuit Breaker: 50Hz Mechanical Life: 20000 Times
Port: NINGBO/SHANGHAI Installation: Easy To Install
Contact: 85% Sliver
High Light:

MCCB Moulded Case Circuit Breaker

,

250A Moulded Case Circuit Breaker

,

Tender Moulded Case Circuit Breaker

400A 3P 4P 125A 200A 250A MCCB Moulded Case Circuit Breaker for Tender







Products Description

SM1 series MCCB Moulded Case Circuit Breaker, which is the one kind of new type circuit breakers researched and developed by our company adopting advanced design and manufacturing technology.

This circuit breaker of rated in insulation voltage 660V is suitable for infrequently switching circuit of AC50Hz,rated operating voltage 380V or below, rated operating current up to 800A and starting motor infrequently .

Furthermore, the circuit breakers has overload, short-circuit and under voltage protection equipments that can prevent circuit and power device being damaged. The circuit breaker conforms to IEC947-2,GB14048.

Product Parameters
Type
SM1-63
SM1-100
SM1-225
SM1-400
SM1-630
SM1-800
Rated current A
6/10/16//20/25/
32/40/50/63
63/80/100
100/125/160/
180/200/225
225/250/315/
350/400
400/500/630
630/700/800
Poles
3P/4P





Rated voltage
380V





Rated insulation voltage
690V





Arcing over distance
0
0
0≤50
0≤50
0≤100
0≤100
Ultimate short circuit breaking capacity
25-50KA
25-85KA
25-85KA
35-85KA
35-85KA
65-100KA
Service short circuit breaking capacity

18-50KA
18-50KA
25-50KA
25-65KA
42-65KA
Operation perfotmance
1500 / 8500

1000 / 7000

1000 / 4000




250A MCCB Moulded Case Circuit Breaker For Tender 1250A MCCB Moulded Case Circuit Breaker For Tender 2250A MCCB Moulded Case Circuit Breaker For Tender 3



Classification
It is sorted into three-pole and four-poles according to product pole number. The type for neutral pole of four-pole products is sorted into four kinds:

Type A:N pole can't be installed with over current tripping element , and it always switch on, can't switch on and switch off together with other three poles.

Type B:N pole can't be installed with over current tripping element, it can switch on and switch off together with other there poles.

Type C:N pole can be installed with over current tripping element, and it also can switch on and switch off together with other three poles.

Type D: N pole is installed with over current tripping element, and it always switch on, can't switch off together with other poles.
Working Environment
a. Altitude: 2000m or below
b. Ambient medium temperature:-5°C~ +40°C( +45°Cfor marine products)
c. Resist the effect of moist air.
d. Resist the effect of mold.
e. Max inclination: 22.50
f. Placed in the no explosive medium, which can't contain any gas and conductive dust that can erode metal and destroy the insulation.
g. Keep it where can prevent rain and snow.

Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
250A MCCB Moulded Case Circuit Breaker For Tender 4
250A MCCB Moulded Case Circuit Breaker For Tender 6
250A MCCB Moulded Case Circuit Breaker For Tender 8
FAQ
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.

Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
