IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb

IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb

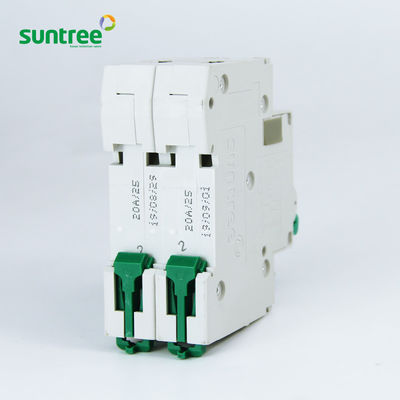

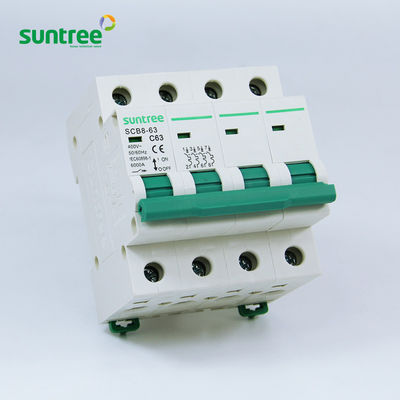

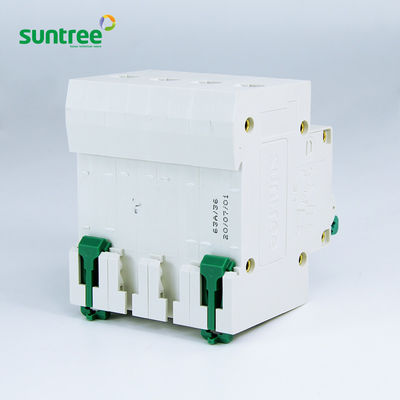

IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb

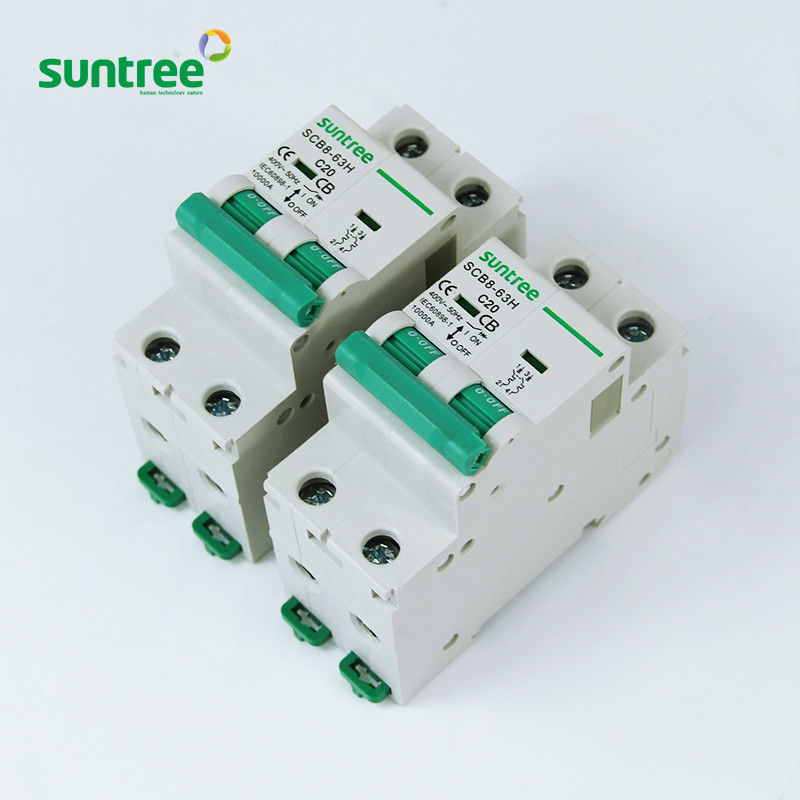

Large Image :  IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE
Certification: IEC;CE
Model Number: SCB8-63H
Payment & Shipping Terms:
Minimum Order Quantity: 120 Piece/Pieces
Price: $1.40 - $16.43 / Piece
Packaging Details: standard packing
Delivery Time: 7~15DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Type: Mini Poles Number: 1P 2P 3P 4P
Standards: CE CB IEC60898 Poles: 1,2,3,4
Tripping Characteristics: B;C;D Rated Breaking Capacity: 10kA
Rated Current: 1~63A Mechanical Life: 20,000
Protection Degree: Terminals IP20,Housing IP40 Terminal Size: 0.75~25mm2
Place Of Origin: China Zhejiang Rated Frequency: 50/60Hz
MOQ: 120pcs
High Light:

32 Amp Single Pole Mcb

,

1 pole mcb 32 amp

,

Mini 32 Amp Single Pole Mcb

SUNTREE factory MCB Mini Circuit Breaker 10kA 2P 4P 6kA 230V



Product Description
Mini Circuit Breaker AC MCB 230V 400v 1P 2P 3P 4P SCB8-63H 10kA manufacture good quality
SCB8-63 AC MCB circuit breaker series is used in lighting distribution system ormotor distribution system for protecting overload and short-circuitin the system.

The product is novel in structure, light in weight,reliable and excellent in performance. It has high breaking capacity,up to 6kA. Its case and items are adopted with high fire-resistant and shockproof plastics.The product, with long life, is mainly used in AC 50/60Hz single-pole 230V or two, three, four-pole 400V circuit for overload and shortcircuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case.

The product complies with EN/IEC60898.
Product Parameters
Type
SCB8-63H
Poles
1P 2P 3P 4P
Rated current
1/2/3/4/6/8/10/16/20/25/32/40/50/63A
Rated voltage
230V/400V/415V AC
Characteristic capacity
10KA
Electrical life
6000times
Mechanical life
20000times
Tropicalizes
Treatment 2
Curve
B,C,D
Certificate
CE TUV IEC GB
Standards
IEC 60898-1
Rated impulse withstand voltage
6.2kV
Connection terminal
Screw terminal / Pillar terminal with calmp
Connection capacity
Rigid conductor up to 25mm²
Fastening torque
2.0Nm
Installation
On symmetrical DIN rail 35mm / Panel mounting
Details Images

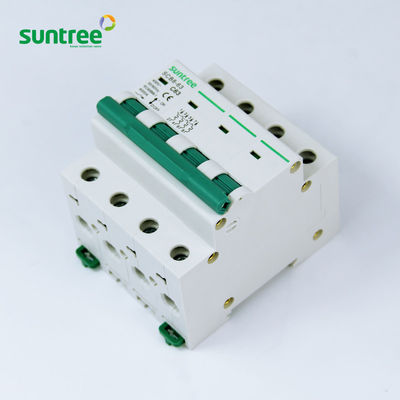

IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb 1
IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb 2
Product Processing

The state-of-art design

Elegant appearance;cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.



Handle central-staying function for circuit fault indicating
In case of overload, to protect circuit,MCB handle trips and stays at central position, which enables
a quick solution to the faulty line. The handle cannot stay in such position when operated manually.



High short-circuit capacity
High short-circuit capacity 6KA for whole range and 10kA capacity for current rating up to 63A
thanks to the powerful electric arc extinguishing system.

Long electrical endurance up to 6000 cycles thanks to quick making mechanism.



Handle padlock device
MCB handle can be locked either at "ON" position or at "OFF" position to prevent unwanted operation of the product.



Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals.

Company Profile
SUNTREE Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb 3
IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb 5
IP40 25mm2 60Hz Mini 32 Amp Single Pole Mcb 7
