IP66 SISO-40 DC1000V 20A Solar PV Disconnector

Certification
China Wenzhou Xinchi International Trade Co.,Ltd certification
China Wenzhou Xinchi International Trade Co.,Ltd certification
I'm Online Chat Now

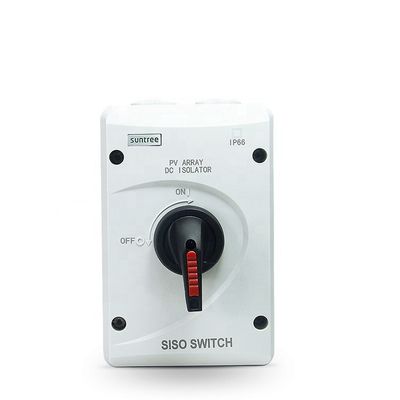

IP66 SISO-40 DC1000V 20A Solar PV Disconnector

IP66 SISO-40 DC1000V 20A Solar PV Disconnector
IP66 SISO-40 DC1000V 20A Solar PV Disconnector IP66 SISO-40 DC1000V 20A Solar PV Disconnector IP66 SISO-40 DC1000V 20A Solar PV Disconnector IP66 SISO-40 DC1000V 20A Solar PV Disconnector IP66 SISO-40 DC1000V 20A Solar PV Disconnector IP66 SISO-40 DC1000V 20A Solar PV Disconnector

Large Image :  IP66 SISO-40 DC1000V 20A Solar PV Disconnector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SUNTREE
Model Number: SISO-40
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $15.00 - $35.00/ Piece
Packaging Details: standard carton packing
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Max. Current: 32A Max. Voltage: 1000V
Type: Solar PV Disconnector Protection Degree: IP66
Certificate: TUV,IEC,CB,CE,SAA,ROHS Pole: 3P/4P
Color: Grey/Black Connection: M20,M25,MC4
Function: ON-OFF-ON Application: Solar Pv System
Guarantee Period: 2 Year Keywords: 63a Isolator Switch
Port: ShangHai / NingBo
High Light:

DC1000V Solar PV Disconnector

,

DC1000V Isolator Switches

,

SISO-40 Solar PV Disconnector

Suntree SISO-40 Solar PV Disconnector 20A DC 1000V Isolator Switches





Product Description

1. UV Resistant IP66 Enclosure

2. Extremely Short Power Shut Off Time Of Approax.2ms

3. Lid Only Recommended In "off" Position

4. Earth Terminal

5. IEC60947-3, AS/NZS60947.3:2015

6. DC-PV1 DC-PV2 DC-21B

7. 10A To 32A up to DC 1200V

8. Wall-mounted design, No need to open the cover mounting, Flexible installation.

9. Rational Operational design prevents, reverse/incorrect rotation

Product Paramenters
Model
SISO-40
Pole
3P/4P
Rated voltage
1000VDC to 1200VDC
Rated current
10A/16A/20A/25A/32A
Dimensions
108X101X166mm
Waterproof degree
IP66
Breaking capacity
1000/1700
Certificate
CE/CB/TUV/IEC/SAA
Standards
IEC60947-3
Ambient temperature
-25℃-- +85℃
Insulated voltage
DC 1500V
Connection type
M20 M25 MC4
Details Images
Testing 96.5°C high temperature and flame retardant on site within 5 seconds,the burning flame is completely extinguished,shorter than standard 10 seconds.

The product passed IEC authorized IP66 waterproof testing,also our company will take simulation tests irregularly,similar to customer's using environment,to make sure this product completely conforms IP66 protection grade.

At about 2pm,the highest temperature moment in a day,we do test on the working DC isolating switch,maximum contact temperature is 28.8°C,which is lower than standard 35°C.
IP66 SISO-40 DC1000V 20A Solar PV Disconnector 1
Application
IP66 SISO-40 DC1000V 20A Solar PV Disconnector 2
Recommend Products
IP66 SISO-40 DC1000V 20A Solar PV Disconnector 3
IP66 SISO-40 DC1000V 20A Solar PV Disconnector 5
IP66 SISO-40 DC1000V 20A Solar PV Disconnector 7
IP66 SISO-40 DC1000V 20A Solar PV Disconnector 9
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: DC-Fuse, SISO-40 solar Isolator Switch, Solar on grid inverter/Cable/Connector, AC&DC Circuit Breakers, Contactors, MCCB, ATS auto transfer switch, Waterproof distribution box, DC Combiner
 Box,etc.

Quality &Standards:-Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc.
Main markets:-Australia,New Zealand,&other worldwide markets.
IP66 SISO-40 DC1000V 20A Solar PV Disconnector 11
FAQ

What are the common faults of isolator switches
1. Contact parts overheating,

2. Refuse opening and closing,

3. Error opening and closing.

What is the cause of the overheating of the contact part of the isolator switch during operation
During operation Isolator switch overheating, mainly due to heavy load, increased contact resistance, the operation is not fully satisfactory

Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
