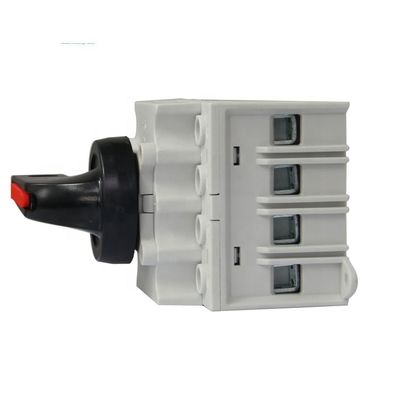

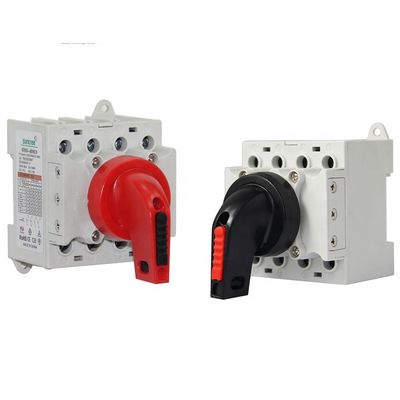

SISO-40 1200V Rotary Isolator Switch For Solar PV System

SISO-40 1200V Rotary Isolator Switch For Solar PV System
SISO-40 1200V Rotary Isolator Switch For Solar PV System SISO-40 1200V Rotary Isolator Switch For Solar PV System SISO-40 1200V Rotary Isolator Switch For Solar PV System SISO-40 1200V Rotary Isolator Switch For Solar PV System SISO-40 1200V Rotary Isolator Switch For Solar PV System SISO-40 1200V Rotary Isolator Switch For Solar PV System

Large Image :  SISO-40 1200V Rotary Isolator Switch For Solar PV System

Product Details:
Place of Origin: Zhejiang, China
Brand Name: suntree, suntree/oem
Model Number: SISO-40
Payment & Shipping Terms:
Minimum Order Quantity: 30 Piece/Pieces
Price: $15.00 - $35.00 / Piece
Packaging Details: standard packing
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Max. Current: 32A Max. Voltage: 1000V
Type: Disconnecting Switch Rated Current: 10-32A
Rated Voltage: 1000V Color: GREY
Certificate: TUV,CE,CB Installation: Screw
Application: Solar System Function: ON-OFF-ON
Port: Ningbo/shanghai
High Light:

1200V Rotary Isolator Switch

,

SISO-40 DC Disconnector

,

SISO-40 Rotary Isolator Switch

SISO-40 Series DC 1200V Rotary Isolator Switch Disconnector for Solar PV System





Product Description
1. UV resistant IP66 enclosure
2. Extremely short power shut off time of approx. 2ms
3. Lid only removable in 'off' position
4. Earth terminal
5. IEC60947-3, AS/NZS 3947.3:2001
6. DC21B 10A to 32A up to DC1200V
7. Easy to install
8. DC Isolator switch with MC4 connector
9. DIN Rail Mounting Type Solar Isolator Switch / PV Isolator / DC Isolator
Product Parameters
Product Type
Isolator Inner Core
Rated current
10A,16A, 20A, 25A,32A
Rated voltage
DC 1000V
IP rating
IP66
Standard
IEC60947-3
Certificate
CE/TUV/IEC/ROHS
Connection type
M20 M25 MC4
Working temperature
-5℃~+60℃
Detailed Images
SISO-40 1200V Rotary Isolator Switch For Solar PV System 1
SISO-40 1200V Rotary Isolator Switch For Solar PV System 2
SISO-40 1200V Rotary Isolator Switch For Solar PV System 4

Generally speaking, the voltage on DC side of PV system usually is higher, could be as high as 1000VDC. So we need switchgear of Ue=1000VDC. The branch circuit in combiner box needs protection, while the main circuit equipments in combiner box and DC cabinet need isolating function.



1. DIN Rail Mounting Type solar DC Isolator switch with load of 1000VDC or remote operation function. In addition, it needs to install switchgear.



2. On DC side of inverter cabinet to switch with loads, plays a role of isolation for overhauling. DC Isolator switch with MC4 connector.



3.DC Isolator switch with MC4 connector. SISO-32 DIN Rail Mounting Type Solar Isolator Switch / PV Isolator / DC Isolator.

Application
1. Compact and suitable where space is limited
2. DIN rail mounting for easy installation
3. Load-breaking up to 8 times rated current making it ideal for motor isolation
4. Double-break with silver rivets - superior performance, reliability and long lasting
5. Padlockable handle - tamper-proof
6. Highly visible red/yellow handle of 1000V DC 4 Phases Isolator Switch
7. With MC4 solar connector. Or DIN Rail Mounting Type Solar Isolator Switch PV DC Isolator switch.
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: DC-Fuse, SISO-40 solar Isolator Switch, Solar on grid inverter/Cable/Connector, AC&DC Circuit Breakers, Contactors, MCCB, ATS auto transfer switch, Waterproof distribution box, DC Combiner
 Box,etc.

Quality &Standards:-Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc.
Main markets:-Australia,New Zealand,&other worldwide markets.
SISO-40 1200V Rotary Isolator Switch For Solar PV System 6
SISO-40 1200V Rotary Isolator Switch For Solar PV System 8
SISO-40 1200V Rotary Isolator Switch For Solar PV System 10
FAQ
Q:  How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q:How long is your products warranty ?
A: The warranty period of our products is 2 Years.

Q:How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q:What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
